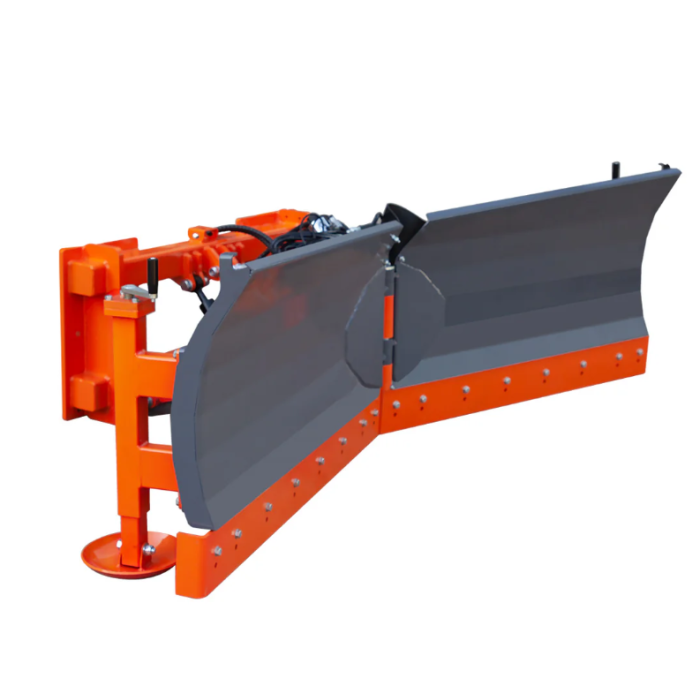

TMG Industrial TMG-SP08X 8-½’ U/V Angle Blade Snowplow, Metal Edges, 6 Positions, Accumulator & Solenoid Valve, 40-90 HP Tractors, TMG-SP08X

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$4,499.00
Model No: TMG-SP08X
Website Product ID: 77449

The TMG-SP08X U/V Angle Blade Snowplow is an ideal attachment for commercial snow removal companies who need to work on large parking lots, clearings and work sites. Its 8-½’ of working width and versatile moving blade makes bigger lots and diverse areas easy to clear even after heavy snowfalls due to its tough, rugged build. Could also be used on farms that have large clearings, driveways and trucking areas.

Two bolt-on, high tensile steel cutting edges are resistant to wear and provide superior, heavy-duty pushing power for a clean, professional finish that you and your customers will be proud of. 140° angled U-blade and 215° angled V-blade with a 30° variance left or right provides both strong snow pushing and drift breaking capacity.

2-way, 6-port hydraulic diverting solenoid valve integrated to manipulate in all directions. System is protected from high resistance push back due to the hydraulic accumulator that dramatically extends the lifespan of the attachment.

Features

  • Ideal attachment for commercial snow removal companies that need to move snow out of large parking lots, clearings, work sites and more
  • 102” working width is able to move large piles of snow to make removal more efficient after light to heavy snowfalls in bigger lot areas
  • Two bolt-on, high tensile steel cutting edges are resistant to wear and will make sure you scrape snow right down to the pavement for a clean, professional finish
  • 140° angled U-blade and 215° angled V-blade with a 30° variance left or right provides both strong snow pushing and drift breaking capacity
  • Combination system with a hydraulic accumulator, 6-port, 2-way solenoid valve and two pressure buffer relief valves integrated to manipulate all directions
  • Ideal for the inventory of college campuses, shopping mall properties and professional buildings to clear sidewalks, driveways and entrances

Specifications

  • Assembled size: 108” (L) x 41-½” (W) x 30” (H)
  • Working width: 102”
  • Metal cutting edges (2): 54” x 6” x ⅜”
  • Side shoe crank range: 3-½”
  • U-blade angle: 140°
  • V-blade angle: 215°
  • Side angle: 30°
  • Quantity of cylinders: 3
  • Quantity of positioning springs: 6
  • Hydraulic hose: 13’ long, ½” diameter
  • Hydraulic pressure: 3050 PSI
  • Flow rate: 8 GSM
  • ±3° oscillation to overcome uneven roads
  • Hand crank adjustable skid shoes
  • Hook up ears not included. Custom modifications required to ensure compatibility with your specific machine
  • This product is packed in a metal crate shipping box
  • Shipping dimension: 75” x 36” x 24” (L x W x H)
  • Shipping weight: 1280 lb

Includes

(1) 8-½’ U/V Angle Blade Snowplow, Metal Edges, 6 Positions, Accumulator & Solenoid Valve, 40-90 HP Tractors, TMG-SP08X
