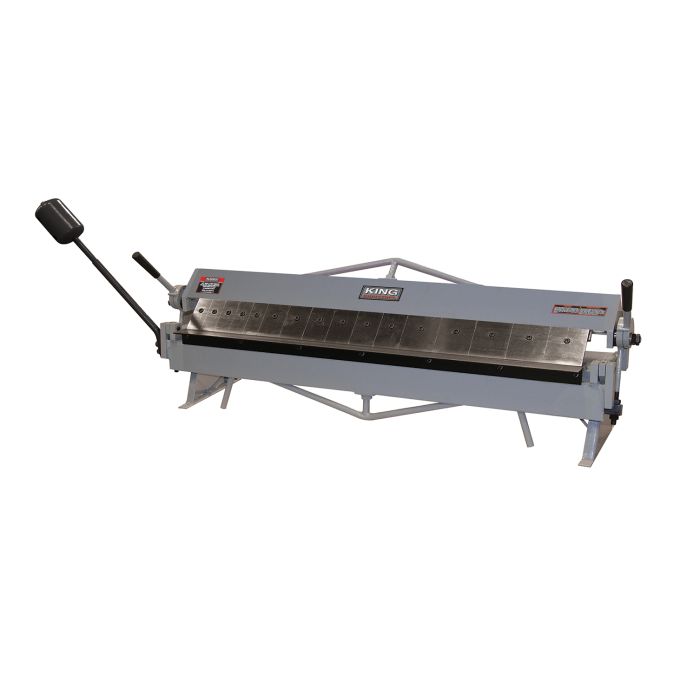

King KC-BP4816 16 GAUGE 48" BOX AND PAN BRAKE

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$1,199.00
Model No: KC-BP4816
Website Product ID: 67350

48" x 16 Ga. box and pan brake (new + improved)

Features

  • Incorporates all the features of our standard handbrakes, but with greater range of applications
  • Sectioned fingers are easily removed for box bending and special forming operations
  • Wide assortment of finger widths allow greater versatility in the shop

Specifications

  • CAPACITY (MILD STEEL): 16 Gauge
  • BENDING LENTH: 48"
  • MAXIMUM LIFT OF BEAM: 1-1/2"
  • MINIMUM REVERSE BEND: 1/2"
  • MINIMUM FLANGE (MILD STEEL): 5/16”
  • MAXIMUM DEPTH OF BOX: 3"
  • FINGER WIDTHS: 5 x 2”, 6 x 3”, 5 x 4”
  • ASSEMBLED DIMENSIONS(LXWXH)/WEIGHT: 72” x 15” x 28-3/4” / 315 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 62” x 17-1/2” x 23” / 355 lbs

Includes

  • (1) 16 GAUGE 48" BOX AND PAN BRAKE (KC-BP4816)
